• Product Accessories：

● Pen camera           ●  USB cable        　 ● User manual CD

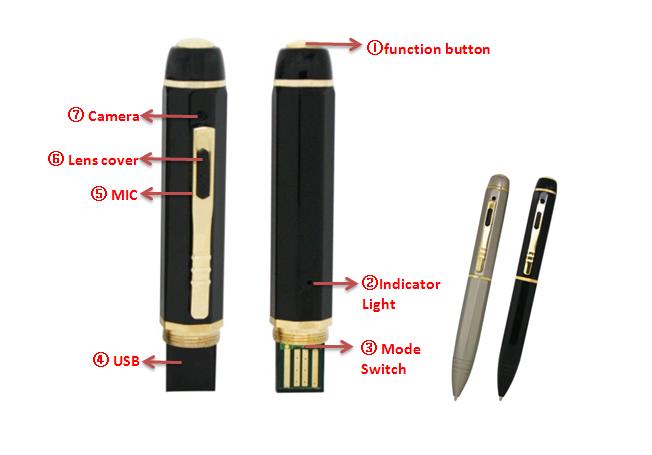

• Picture & Button

View Description:
1. Functions button(Power on/off )            2. Indicator light    3. Mode switch (Left: reset, Mid: video, Right: audio/photo)     4.  USB     5.  MIC    6. Lens cover   7.Camera
● Product Data:

1. Main function: Recording video / audio simultaneously, taking photos, recording audio alone, Webcam, USB disk, pen
2. small volume, use for wide range , High conceal

3)  Video  format:  AVI, 1280*720
4)  Photo format: JPEG, 4032*3024;
5)Voice format: WAV
6) Internal Memory: 2GB-8GB, Max 32 GB
5)USB: 2.0(Hs)
6)Charging time: 2-3 hours
7)Using time: continuously recording for 1 hour with its built-in Li battery
8) Operation systems: No need for driver installation if the operating system is Windows ME/ 2000/ XP/ VISTA or above (Wndows98 is excepted)

• Operation

21. Switch on


First, open the lens cover downwardly, move the Mode switch button to Mid, the position of record video mode; Under turn off mode, press Functions button to turn on camera, blue and red light keep on, after initialization, blue light off, red light keeps on, that device is in the recording video mode.
Note: to save the power, the device will turn off automatically within 3 mins if no any operations.

21. Recording video

Under the video standby mode, short press Functions button, red light flashes, the device enters into the recording video mode; short press the same button again, red light keeps on, the file of video is saved and back to the video standby mode.

21. Taking photos

Under video standby mode, move mode switch button to right, which is photo/audio mode, at this time, blue light keeps on, which means the device enters into photo /audio standby mode, Shortly press Function button, blue light flashes once, one photo has been taken and saved, and then the device comes back to photo /audio standby mode. If need more photos, please repeat the above operations.

21. Record audio alone

Under audio/photo standby mode, long press function button for 3 seconds,  at this time, blue light flashes, which means the device enters into audio recording mode, Shortly press Function button, blue light keeps on, audio file has been  saved and the device comes back to photo /audio standby mode.

21. Switch off

Under any mode, long press Functions button can turn the device off.
If the device is no any operations in 3 minutes under the standby mode, the device will power off automatically.
Under any situations, move mode switch button to left ,which will reset and turn off the device.
Note: Under video and audio mode, long press function button to turn off, the system will save video or audio files firstly and then turn off. But to turn off the device via reset, the device cannot save the files.

21. Reset

When device are illegal operation or some other unknown reasons, need to reset the device. Move mode switch button to Left to reset the device. Meanwhile, the device is in power off mode.


21. Write

Spin nib, cartridge extend automatically, the pen could write, spin nib negative direction could take back the nib.


21. Charging

Under power off standby mode, connecting to computer via USB cable to charge, blue light keeps on,red light flashes, indicating the device is charging. When it has charged fully, blue and red light keep on.

21. Playback on computer

After finishing the video record, under power off mode, via USB to connect to computer, click on the removable disk, select the photos, video files and double-click the files to playback on computer. Please make sure computer has been installed the related software before playback on computer.

21. Webcam

This device can be used as webcam. But firstly install the driver software” STK02N 2.3. exe”.
Under the power on mode, connect the device to your PC via the USB cable,  at this moment, a standard web camera will appear in the screen that you can use it at ease as a webcam, no need other drive.

21. Setting time

There is a function which show the video recorder time (year-month-day hour: minute: second) will be recorded in the recorded files, and will be shown when playback. Please set the time correctly as follows:

1. Insert the user manual CD into the computer
2. Click on the update time tool V2.0
3. then the time of the pen camera will be the same as your computer
4. If you want to change the time, just adjust the time of computer

• Attention

1. To save the power, if the device is no any operations in 3 minutes under the standby mode, the device will power off automatically.
2. When the device is lack of battery when taking video, the system will save the video data first, then shut down automatically.
3. When keep the video recording, the system will create a new video files after every operation.
4. Please use the device under the sufficient lighting environment, keep the DV vertical stable, stay some distance with the scenery was been recorded to get the more better video file.
5. Connecting computer: while connecting, do not do any operation, if the device cannot be recognized by computer, please check the computer system, driver, USB port, USB cable, then reconnect.
