Users Manual
HD 720P Eyewear Video Recorder JVE-HD04
Source:未知
Writer:admin
Time:2014-07-02 11:05:03
Click:Loading...

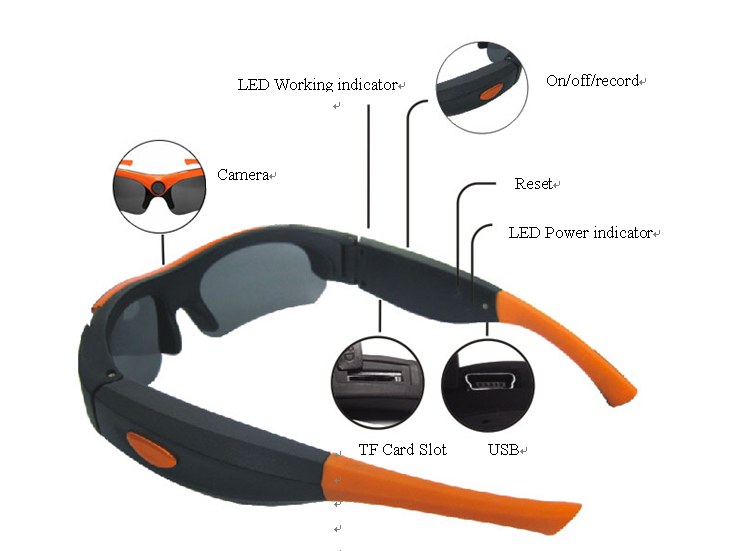

一． overview
2． Introduction
This is the first HD-DV Sunglasses. You can take high-rez videos and photos. This is a pair of multifunctional sports sunglasses, supporting Micro SD(TF) card, With simple operation, elegant design, small size, it is easy to carry. It’s convenient for archer, hunting, fishing, police, traveling etc. It lets you record the most memorable moment in your life. With elegant design for both for men and women, this product is deeply favored by customers.
3．Operation：
A) Power on/ Take photo /Record video
Power on: Press the button to turn on the device. The blue light goes on. The device begins initializing
Take photo：Under Standby mode, short press the power button, the blue light blinks once and keeps on, indicating a photo has been taken。
Record Video: Under standby mode, press hold the power button for 2 seconds and release, the blue light flashes three times and the unit enters the video recording mode. Short press the power button, the blue light keeps on, the unit stops recording video and a video file is generated.
B) Power off
Press hold the power key for 3 seconds, the blue light flashes three times, then working indicator light（blue）and power indicator light (red) light go on at the same time, the unit saves the files and shut down automatically.
Note: 1. Before any operation, please insert memory card.
2. Turn off the unit before you take out the card to avoid data loss or any damage.
3. when the memory card is full or there is no card, the red light keeps on while the blue light flashes quickly, the unit will automatically save data and shuts down.
4. please don't recording video towards the sun, it could damage the camera.
C) Reset:
If the device is not functioning properly, for example, the unit crashed or can’t record video, please press the reset button.
D) Time setting
1. Please insert a TF card first, after connecting the computer ,you will find a new removable disk
2. Open the file "time", input the time settings string, the string is composed of "year. month.Day hours.minutes.seconds"(there is a space between), set up time as follows:
2013-11-28 23:59:59
A. Save the “time” file and uninstall hardware, reboot the unit and the right time setting is in place.
B. The time will be saved in the camera.
E) PC camera:
Press the power key when the unit is connected to a computer, you will enter the PC Camera (webcam) mode. The unit now can be used as a PC camera.
Note: The time it takes for the computer to detect the unit may vary due to different computer configurations. If the computer can not detect the unit, unplug the unit and try again.
F) Charge
Connect the unit to a computer using the USB cable. While charging, the red light flashes slowly. When the battery is full, the green light keeps on.
Note: If the device fails to start or the blue light flashes quickly, the battery may run low and needs to be recharged. For the first 3 times, it is recommended that you charge the battery for 2-3 hours. Please don’t charge for more than 5 hours.
4. Specifications
5. Trouble shootings
6．Warning
l Application: Please do not violate relevant regulations and laws. This product should not be used for any illegal purposes. The user takes full responsibility for any consequences resulted from illegal purposes.
l Battery: Battery life may shorten as the time of usage grows. After a long time of storage, please recharged the battery before using it.
l File security: This product is not a device for specific storage purposes. Please backup the important files to your computer or other storage device timely.
l Video quality: This product is not a professional video recording device. The video quality may fall short of that you expect from professional video recording devices.
l Operating temperature: -5 - 40°C.
l Operating humidity: 20% -80%. This product does not have waterproof function.
l Brightness: Do not expose the camera directly under strong light, such as the sun, to avoid damage to optical components.
Cleaning: Do not use it under the environment with high dust density to avoid the contamination of camera lens or other components.
2． Introduction
This is the first HD-DV Sunglasses. You can take high-rez videos and photos. This is a pair of multifunctional sports sunglasses, supporting Micro SD(TF) card, With simple operation, elegant design, small size, it is easy to carry. It’s convenient for archer, hunting, fishing, police, traveling etc. It lets you record the most memorable moment in your life. With elegant design for both for men and women, this product is deeply favored by customers.
3．Operation：
A) Power on/ Take photo /Record video
Power on: Press the button to turn on the device. The blue light goes on. The device begins initializing
Take photo：Under Standby mode, short press the power button, the blue light blinks once and keeps on, indicating a photo has been taken。
Record Video: Under standby mode, press hold the power button for 2 seconds and release, the blue light flashes three times and the unit enters the video recording mode. Short press the power button, the blue light keeps on, the unit stops recording video and a video file is generated.
B) Power off
Press hold the power key for 3 seconds, the blue light flashes three times, then working indicator light（blue）and power indicator light (red) light go on at the same time, the unit saves the files and shut down automatically.
Note: 1. Before any operation, please insert memory card.
2. Turn off the unit before you take out the card to avoid data loss or any damage.
3. when the memory card is full or there is no card, the red light keeps on while the blue light flashes quickly, the unit will automatically save data and shuts down.
4. please don't recording video towards the sun, it could damage the camera.
C) Reset:
If the device is not functioning properly, for example, the unit crashed or can’t record video, please press the reset button.
D) Time setting
1. Please insert a TF card first, after connecting the computer ,you will find a new removable disk
2. Open the file "time", input the time settings string, the string is composed of "year. month.Day hours.minutes.seconds"(there is a space between), set up time as follows:
2013-11-28 23:59:59
A. Save the “time” file and uninstall hardware, reboot the unit and the right time setting is in place.
B. The time will be saved in the camera.
E) PC camera:
Press the power key when the unit is connected to a computer, you will enter the PC Camera (webcam) mode. The unit now can be used as a PC camera.
Note: The time it takes for the computer to detect the unit may vary due to different computer configurations. If the computer can not detect the unit, unplug the unit and try again.
F) Charge
Connect the unit to a computer using the USB cable. While charging, the red light flashes slowly. When the battery is full, the green light keeps on.
Note: If the device fails to start or the blue light flashes quickly, the battery may run low and needs to be recharged. For the first 3 times, it is recommended that you charge the battery for 2-3 hours. Please don’t charge for more than 5 hours.
4. Specifications
| Video Format | AVI |
| Video Code | M-JPEG |
| Video Resolution | 1280*720 |
| Frame | 30FPS |
| Media Player | The unit has a built-in mainstream video player |
| Photo Format | JPG |
| Pixel | 5 MP |
| Image Scale | 4:3 |
| System Support | Win7/WinMe/WinXP/Win2000/Vista/Mac Os10.5 |
| Charging Voltage | DC-5V |
| Interface Type | Mini 5 Pin USB |
| Memory support | MicroSD (TF), up to 32GB |
| Battery Type | Built-in 500mAh polymer lithium battery |
| Product Size | 145x70x47mm |
| Product Weight | 55g |
| Charging Time | 2-3h |
5. Trouble shootings
| Types | Possible reason | Solution |
| Fail to start | Low Power | Recharge battery |
| System crashed | Reset, then start again | |
| Auto shut-off | Low Power | Recharge battery |
| Green LED flashes | ||
|
Device can not be detected by Computer |
USB Cable damage | Replace new cable |
| PC Bios damage | Set USB enabled | |
| Motherboard doesn’t support |
Update motherboard driver |
|
| Data can’t be saved | Memory is full | Remove video files |
| Power auto off after start | Low battery | Recharge |
| Memory is full | Remove video files |
6．Warning
l Application: Please do not violate relevant regulations and laws. This product should not be used for any illegal purposes. The user takes full responsibility for any consequences resulted from illegal purposes.
l Battery: Battery life may shorten as the time of usage grows. After a long time of storage, please recharged the battery before using it.
l File security: This product is not a device for specific storage purposes. Please backup the important files to your computer or other storage device timely.
l Video quality: This product is not a professional video recording device. The video quality may fall short of that you expect from professional video recording devices.
l Operating temperature: -5 - 40°C.
l Operating humidity: 20% -80%. This product does not have waterproof function.
l Brightness: Do not expose the camera directly under strong light, such as the sun, to avoid damage to optical components.
Cleaning: Do not use it under the environment with high dust density to avoid the contamination of camera lens or other components.
